These are the technical aspects to take into account regarding the integration with this GPS:

Critical Fields

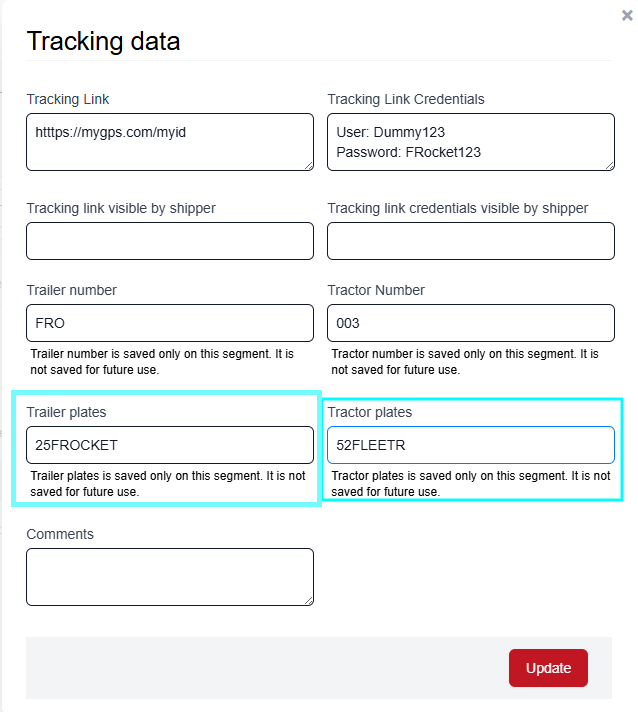

In order for the integration to work properly, we must make sure that the following fields in the unit dispatch (segment unit in the tracking tab) are correctly filled in:

Trailer Plates
Tractor plates

Keep in mind that if you get positioning from both, the box positioning will always be prioritized and it will be the one that will be updated in the segment tracking.

Carrier Equipment Report

This integration DOES include Carrier Equipment Reports.

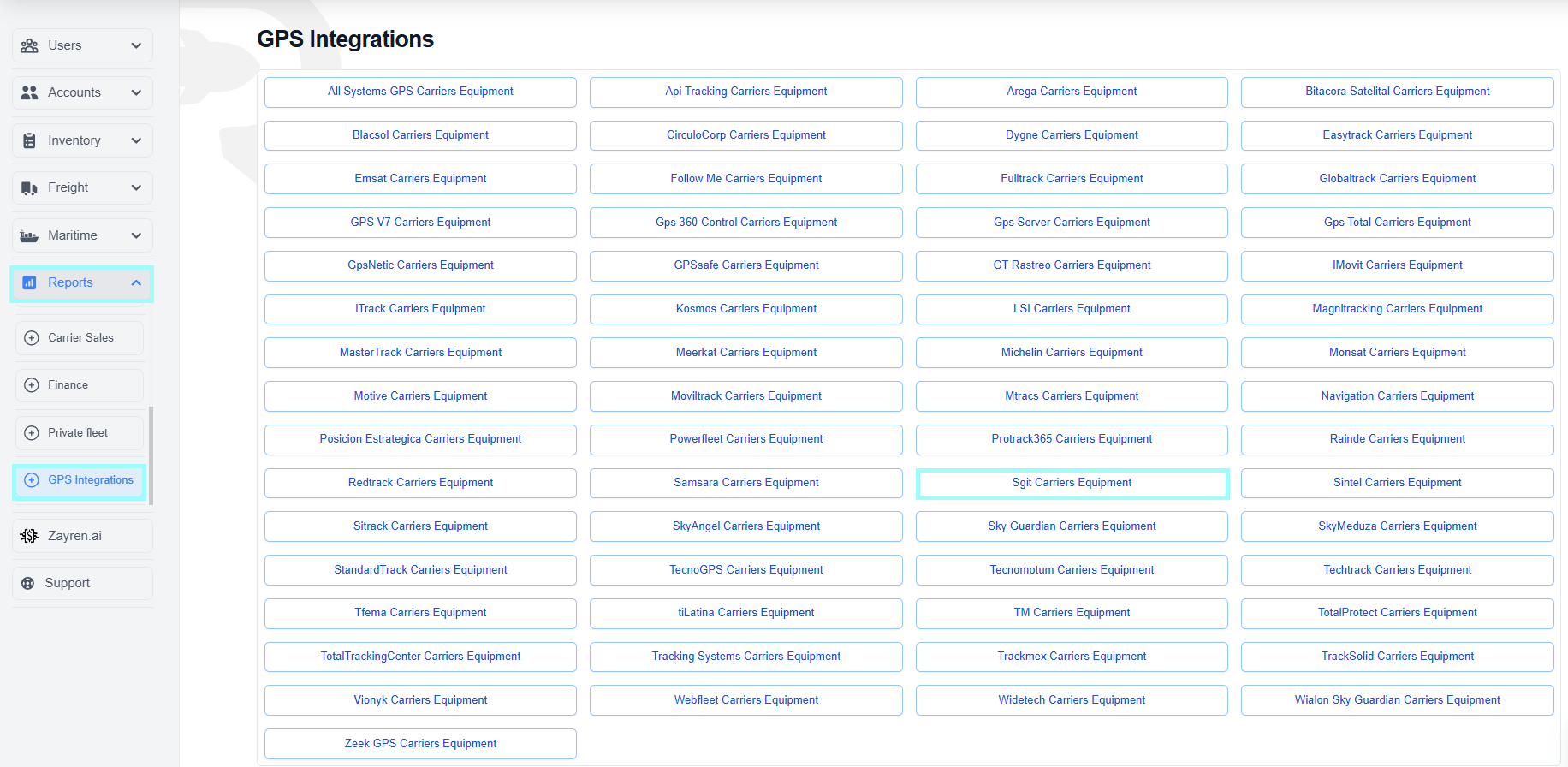

You can access it in the Reports section -> GPS Integrations -> SGIT Carrier Equipment.

Start Status

When the fields are correctly filled in, the integration should start throwing locations from the Dispatched status.

The location will update as long as the segment has tracking enabled, integrations enabled, correct unit information, and is in one of the following states:

Dispatched
Box in pickup yard
In pickup
Pickup Appointment Confirmed
Loading
Loaded
In transit
In transit At stop
Box in crossing yard
At border
Box in carrier yard
At destination
Box in delivery yard
Delivery Appointment Confirmed
Unloading

Frequency of integration

If all requirements are met and the integration works correctly, the frequency with which the location of the unit will be displayed will be every 2 minutes, both tracking and error, if any.

Notifications Channels

Notification channels can be configured for both errors and tracking update logs.
