GM Transport has developed different retransmissions to meet the necessary requirements and send information packages from GPS devices to our platform.
Steps to follow to activate the units for retransmission:

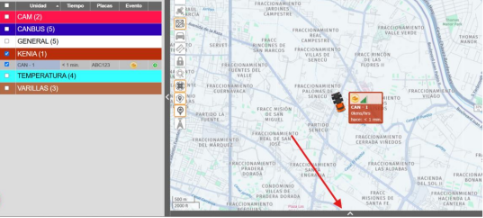

- Within the Satellite Tracking portal (https://www.softwareparatransporte.com/GMTERPV8_WEB/ES/PAGE_CatUsuariosLoginAWP.awp), after entering the credentials provided by the carrier, select the unit you want to use to retransmit data; then open the task bar at the bottom of the map:
-
Once the taskbar is open, click on the "Broadcasts" shortcut.
- Within this module, we will locate the retransmission we want to use and click on the "off" button to change it to "on."
- Next, we will select the retransmission method, which can be one of the following:
1_ For a defined period of time: Data transmission will occur for a period of time defined by the user.
2_ Permanent: Data transmission will continue permanently until the user manually turns off transmission.

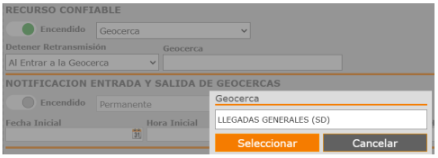

3_ By Geofence: Data transmission will stop when entering or leaving a user-defined geofence:
- Finally, click the following button to save:
Log Report:
This report allows us to confirm that the information is being retransmitted correctly. To open it, click on the following button:

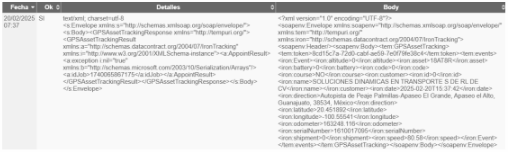

When you open the report, you will find a table with the following information:
Date column: Shows the last date and time information was sent.
OK column: Indicates whether the information was sent correctly.
Details column: Shows the response from the web service to which we are retransmitting the information.
Body column: Shows the information we are retransmitting.
All information may change depending on each platform to which the information is retransmitted.
