These are the technical aspects to take into account regarding the integration with this GPS:
Critical Fields
In order for the integration to work properly, we must make sure that the following fields in the unit dispatch (segment unit in the tracking tab) are correctly filled in:
- Trailer number
- Tractor number
Keep in mind that if you get positioning from both, the box positioning will always be prioritized and it will be the one that will be updated in the segment tracking.
Carrier Equipment Report
This integration DOES have Carrier Equipment Reporting.

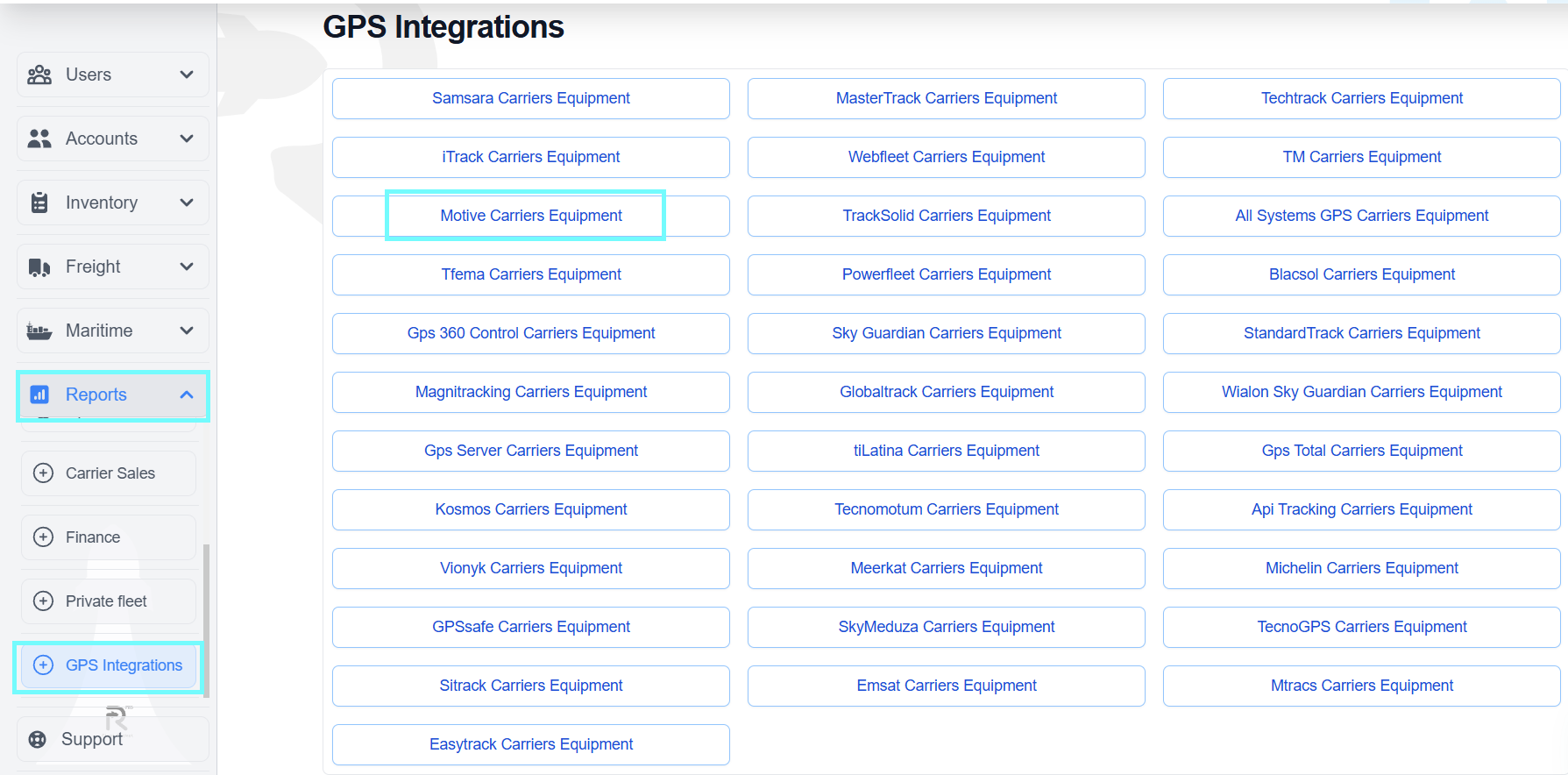

You can access in the section Reports -> GPS Integrations -> Motive Carrier Equipment
Start Status
When the fields are correctly filled in, the integration should start throwing locations from the Dispatched status.
The location will update as long as the segment has tracking enabled, integrations enabled, correct unit information, and is in one of the following states:
- Dispatched
- Box in pickup yard
- In pickup
- Pickup Appointment Confirmed
- Loading
- Loaded
- In transit
- In transit At stop
- Box in crossing yard
- At border
- Box in carrier yard
- At destination
- Box in delivery yard
- Delivery Appointment Confirmed
- Unloading
Frequency of integration
If all requirements are met and the integration works correctly, the frequency with which the location of the unit will be displayed will be every 2 minutes, both tracking and error, if any.
Notifications Channels
Notification channels can be configured for both errors and tracking update logs.
