These are the technical aspects to keep in mind regarding the integration with this GPS:
Critical Fields

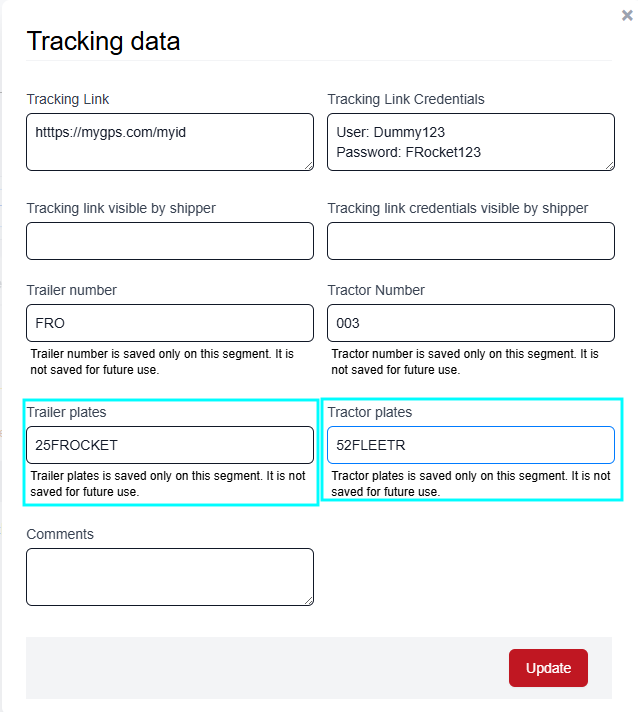

For the integration to work correctly, we must ensure that the following fields in the unit's dispatch (segment unit in the tracking tab) are correctly filled out:
- Trailer Plates
- Tractor Plates
Keep in mind that if positioning is obtained from both, the positioning of the trailer will always be prioritized and will be the one updated in the segment tracking.
Carrier Equipment Report
This integration DOES have a carrier equipment report.

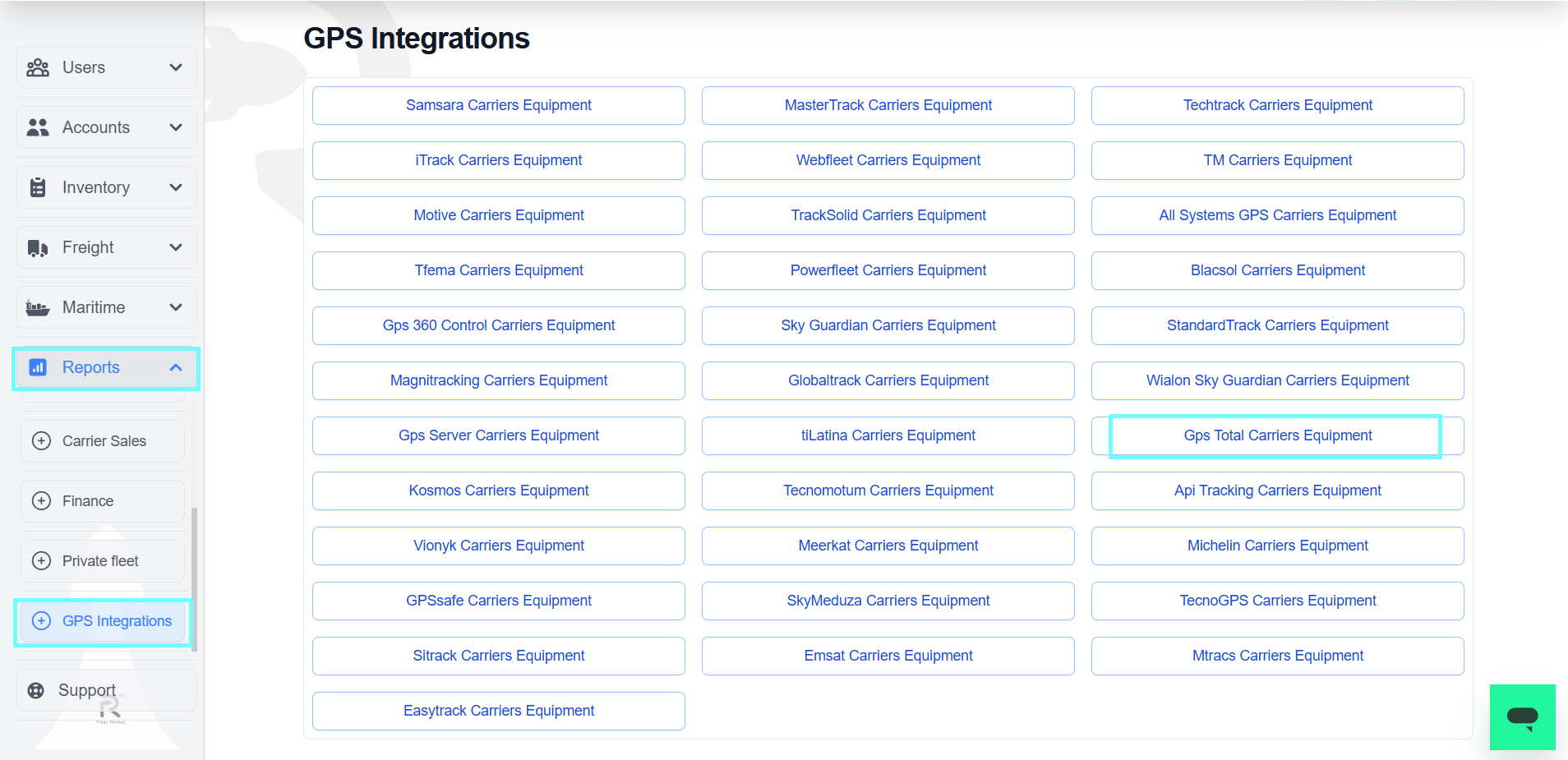

You can access it in the section Reports -> GPS Integrations -> Total GPS Carriers Equipment.
Start Status
When the fields are correctly filled in, the integration should start throwing locations from the Dispatched status.
The location will update as long as the segment has tracking enabled, integrations enabled, correct unit information, and is in one of the following states:
- Dispatched
- Box in pickup yard
- In pickup
- Pickup Appointment Confirmed
- Loading
- Loaded
- In transit
- In transit At stop
- Box in crossing yard
- At border
- Box in carrier yard
- At destination
- Box in delivery yard
- Delivery Appointment Confirmed
- Unloading
Frequency of integration
If all requirements are met and the integration works correctly, the frequency with which the location of the unit will be displayed will be every 2 minutes, both tracking and error, if any.
Notifications Channels
Notification channels can be configured for both errors and tracking update logs.
